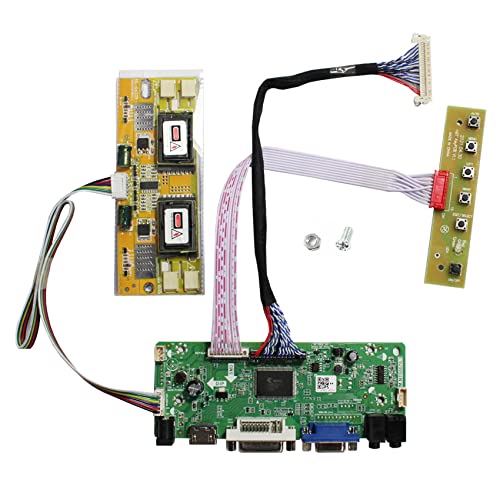

VGA DVI Audio LVDs Controller Board 30 pin for 17" 19" 1280x1024 M170EG01 M170EN01 M170EN06 M170ETN01 1 LCD Gaming Screen Panel

Ask AI a Question

Brand: VSDISPLAY

ASIN: B06X9NJ2NR (CA)

Buy Now on Amazon CA »

Features

• 【LCD Driver Board】 Work for 1280x1024 30 Pins 5V LVDs LCD display. video input: H-D VGA DVI ,Audio output: speaker connector ( 8ohm 2W 4Pin PH2.0 connection).
• 【Compatible Screen models 】17" LTM170EU LTM170EH LTM170E5 LTM170E6 HSD170ME13 M170EG01 M170EG02 M170EN01 M170EN05 M170EN06 LM170E03
• 【Compatible Screen models 】19" LM190E02 LM190E03 LM190E08 G190EG01 M190EG02 M190EG03 M190EN01 HSD190ME11 HSD190ME12
• 【Plug and play】Connecting the cables and ports as link pictures, Power on ,enter into signal,the screen can be lit up.Pls use in insulated environment to avoid short road.
• 【Input power supply】12V DC more than 3A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Board failure self-check】: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen signal port, No enter signal ,the"no siganl" words showing on screen means the problem comes from signal ,Pls try with other signal cable /resource; White/Black screen ,Check screen signal port connecting/resolution/5V jumper pin/Signal resource.
